Diaozhuo Economic Gabion Mesh Machine , Max Width 5500 Wire Mesh
Equipments
1. the introduction of gabion mesh equipment
Gabion mesh machine is the production of the regular hexagon metal mesh professional
equipment, and its products are widely used in the petroleum,
construction, farming, chemical industry, heating pipes and other
pipes wrapped network; it can also used in fence, residential and

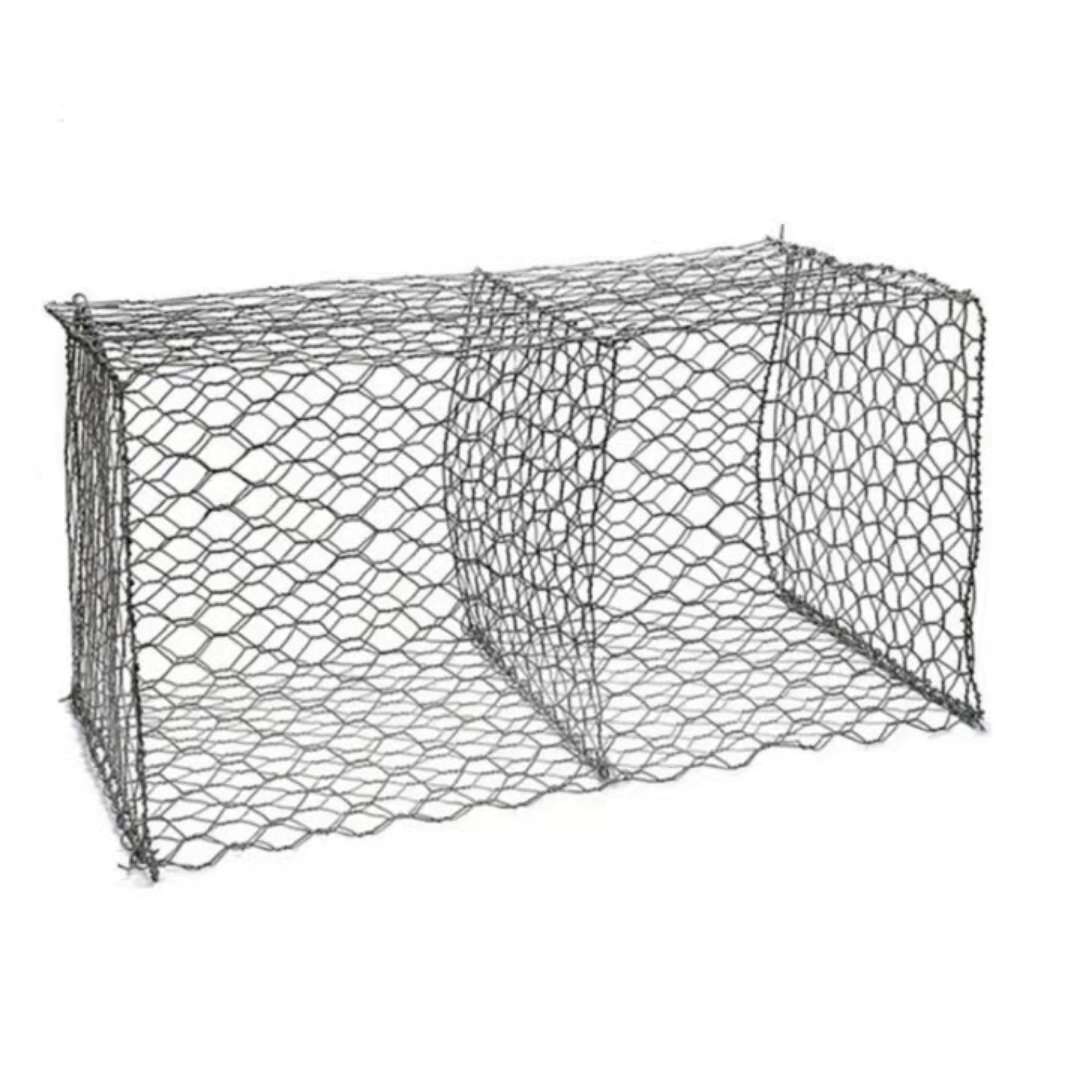

landscape protection. Gabion mesh machine can also be used for the
production of gabion cages, which are widely used to protect and
support the seawall, hillsides, road and bridge, reservoirs and
other civil engineering works, and it is good material for flood
fighting.
Gabion machine is designed to produce hexagonal wire mesh with
galvanized low carbon steel wire, suitable for structural, heat
insulation, protective, and fencing applications. Most of gabion
mesh machines are of horizontal design, ensuring smooth running and
high productivity.
The gabion mesh equipment is used to produce all kinds of gabion
mesh,including wire diameter 1.6-3.5mm,mesh opening
60*80mm,80*100mm,100*120mm and so on,the biggest width can be
5500mm,the detailed information you can see the below sheet for
reference.Noted that one machine can produce only one size mesh
opening.And the gabion baskets are mainly used for river
management, river channel protection, flood control and other water
conservancy projects
2. the good point of machine:
- a. safe,fast speed,low noise and high efficiency,low vibration,easy
to operate
- b. Interrupt the line during the machine preparation process,
disconnect the network or stop the instrument, and alarm the worker
- c. The mesh is neat and uniform and can be reinforced in the middle
of any mesh
- d. The machine is equipped with an automatic lubrication system
that is centralized and easy to use.
3. machine details
Model
| Mesh Size(mm) | Max. Width(mm) | Wire diameter(mm) | Twisting Number | Main Drive Shaft Speed(r/min) | Motor Capacity(KW) | Theoretical Speed(m/h) |
| LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 |
| LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 |
| LNWL23-120-2 | 120*150 | 1.6-3.2 | 20 | 255 |
| LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 |
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 |
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 |
| LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 |
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 |
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 |
| LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 25 | 2 | 165 |
| LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 |
| LNWL43-100-3 | 100*!20 | 1.6-3.0 | 225 |
| LNWL43-120-3 | 120*150 | 1.6-3.2 | 20 | 255 |
