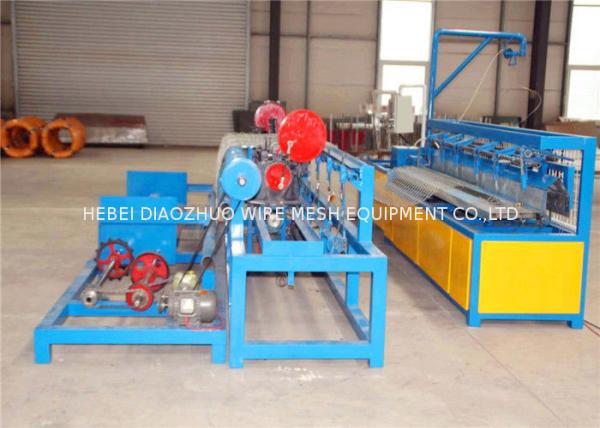

Twisted And Knuckled Side Making Machine Included Chain Link Fence
Machine
Machine description:
Chain link fence machine is to produce different size fence,such as
50*50mm,80*80mm.And the materials can be galvanized wire, pvc
coated wire and so on.The chain link is automatically wound to form
rolls when the desired length is required.The machine is controlled
by PLC with alarm device,and has emergency button,easy and safe to
operate,need one worker to operate.Two wires twist together,and
turn into the finished mesh.And the chain link fence is widely used
in school,playground,gym,railway,airport and so on.
Common specifications for reference:
| Product Name | Automatic Chain Link Fence Machine |
| Wire Diameter(mm) |
1.2-2.0mm Feeding Wire numbers:single(Note:Steel Wire
Standard:GB3081-82) | 1.5-4.0mm Feeding Wire numbers:single(Note:Steel Wire
Standard:GB3081-82) |
| Mesh Size(mm) | 20x20-50x50 | 25x25-100x100 |
| Netting width(mm) | 600--2000 | 600--2000 |
| Capacity(m2/hour) | 40-80 | 60-140 |
| Rated Voltage | 380V,50HZ | 380V,50HZ |
| Weight (T) | 2.8 | 2.8 |
| Outside Size | 3700*850* 1600mm 3500*1000* 1500mm2800*1400*1400mm | 3700*850* 1600mm 3500*1000* 1500mm2800*1400*1400mm |
After-sale services:
1.Guarantee period three years since the date of finishing
commission.
2.Customer services:24*7 online services.
3.No man factor,exchange the accessory parts for free.If the
components break down by mistaken operation,we supply only material
cost price.
4.We offer spares free,these spares can be enough for using one
year.
5.Can send engineer abroad if needed.
