Diamond Mesh Automatic Chain Link Machine Manufacturer Length 3m Or
4m

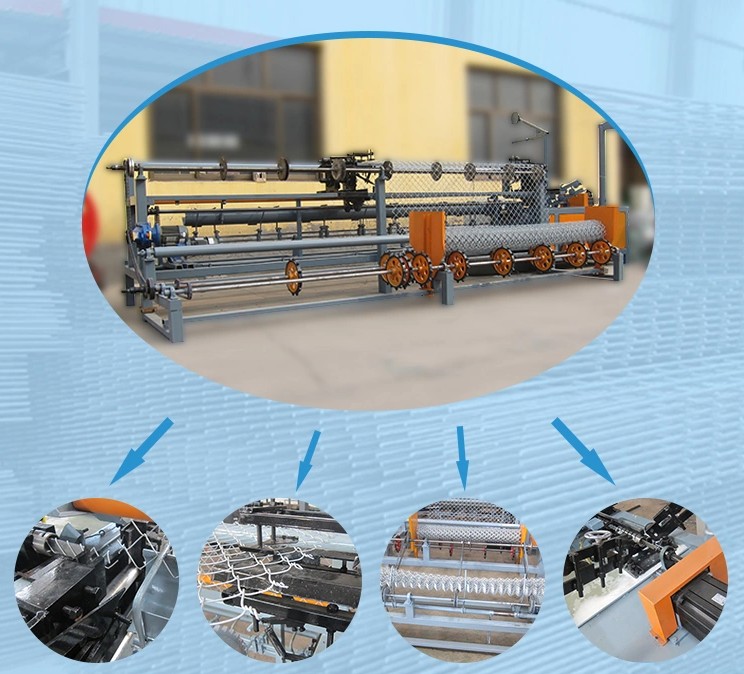

machine introduction:
1. Through die, one rods of wire become diamond-shape.
2. And then diamond-shape wire connects with wire inside the
winding shaft.
3. Mesh width and mesh opening can be customized as customers'
will.
4. Application: extensively used as fences for playground and
gardens, highway, railway, airport, port, etc.
5. This machine is well working in the hot weather condition,
especially for Indian and Africa market.
Technical Parameters
Production Capacity | 60-80(Square meter/hour) |
Steel Wire Diameter | ø2.5-∅4.0 Spinning Wire Number: Twin-wire
(Description: Steel wire standard according with:GB3081-82
YB544-65 Steel Wire Material:B1F-B3F) |
Mesh | 50x50-100x100(mm) |
Breadth | 600-2000(mm) |
Power | 3.0KW for One Machine
4.0KW for One Machine
0.12KW for One Machine |
Overall Dimensions | LXWXH4200mm×4000mm×2500mm |
Advantage
1. The machine is controlled by PLC automatic controller, so only
one person is needed to
operate it.
2. One wire feeding which can reduce the breakdowns.
3. Wide width weaving scope: 1.8-4.5mm.
4. The high productivity for this machine can be 100m²/h.
5. The width scope can be 600-4000mm, and we can customize it for
you.
6. The mesh size can be 25x25-120x120mm, and can be changed
according to the mould.
after-sale service:
1.
Guarantee period 3 years,other factories usually only 1 year.
exchange the accessory free if non-human factor damage
2.
Supply Installation and workers training service.
the fees paid by buyer below
1)Round-trip ticket
2)Local accommodation and transportation fee
3)Engineer’s salary
4)Visa fares
3.
24 hours on-line service
4.
Every 2 years,engineers will go abroad to customer factory to get
the suggestion,continue advancing
Usage
The product is wildly used as prevent for road, railway, airport,
residence district, seaport,
garden, feeding and husbandry.
