1. Expanded metal wire mesh machine description
Expanded metal mesh also named expansion punched machine, stretched
fence net mesh machine
Products widely used for door, vessel, decorative and many other
filter parts
2. expaned metal mesh type we can produce
| type | JQ25-6.3 | JQ25-16 | JQ25-25 | JQ25-63A | JQ25-63B | JQ25-100 | JQ25-125 |
| thickness(mm) | max.1.0 | max.1.0 | max.1.5 | max.2.5 | max.5 | max.6 | max.8 |
| width(mm) | 500 | 1000 | 1250 | 2000 | 2000 | 2000 | 2500 |
| speed | 180/min | 150/min | 150/min | 70/min | 45/min | 60/min | 45/min |
| distance(mm) | 0-1.15 | 0-1.2 | 0-1.2 | 0-7 | 0-7 | 0-13 | 0-13 |
| length of mesh(mm) | max.20 | max.25 | max.30 | max.100 | max.200 | max.150 | max.200 |
| motor | 2.2KW | 3KW | 4KW | 11KW | 11KW | 15KW | 22KW |
| weight | 0.95T | 2T | 3T | 10T | 10T | 12T | 20T |
| measurement(mm) | 950*570*1780 | 1800*1320*1550 | 1940*1600*2010 | 2400*3500*2300 | 2400*3500*2300 | 3600*2500*3000 | 4500*2800*3000 |
3. One set machine include feeding machine+expanded machine+Electric control cabinet.
4. option machine: auto decoiler and auto recoiler
5. Production Process: automatic material feeding→metal plate expanding→cutting
6. The material plate request: galvanized plate, aluminum plate, steel plate,copper plate etc.
7. Feature:
*no scrap
*Exchange mold only,if the thickness is within the specified
range,you can produce different mesh size with one machine
8. packing:wooden box for small machine; one set/40HQ for large machine.
9. Quotation request:
If you need a quotation,pls send us the material thickness.
10. after-sale service:
*supply professional ground foundation drawing for you.
*Guarantee period 3 years,other factories usually only 1 year.
*exchange the accessory free if non-human factor damage
*Supply Installation and workers training service.
*24 hours on-line service
*Every 2 years,engineers will go abroad to customer factory to get
the suggestion,continue advancing

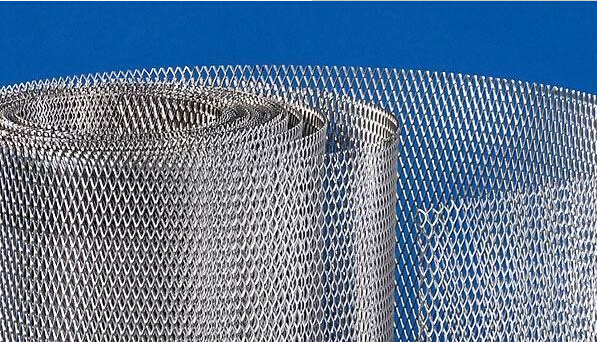

11. finished products
