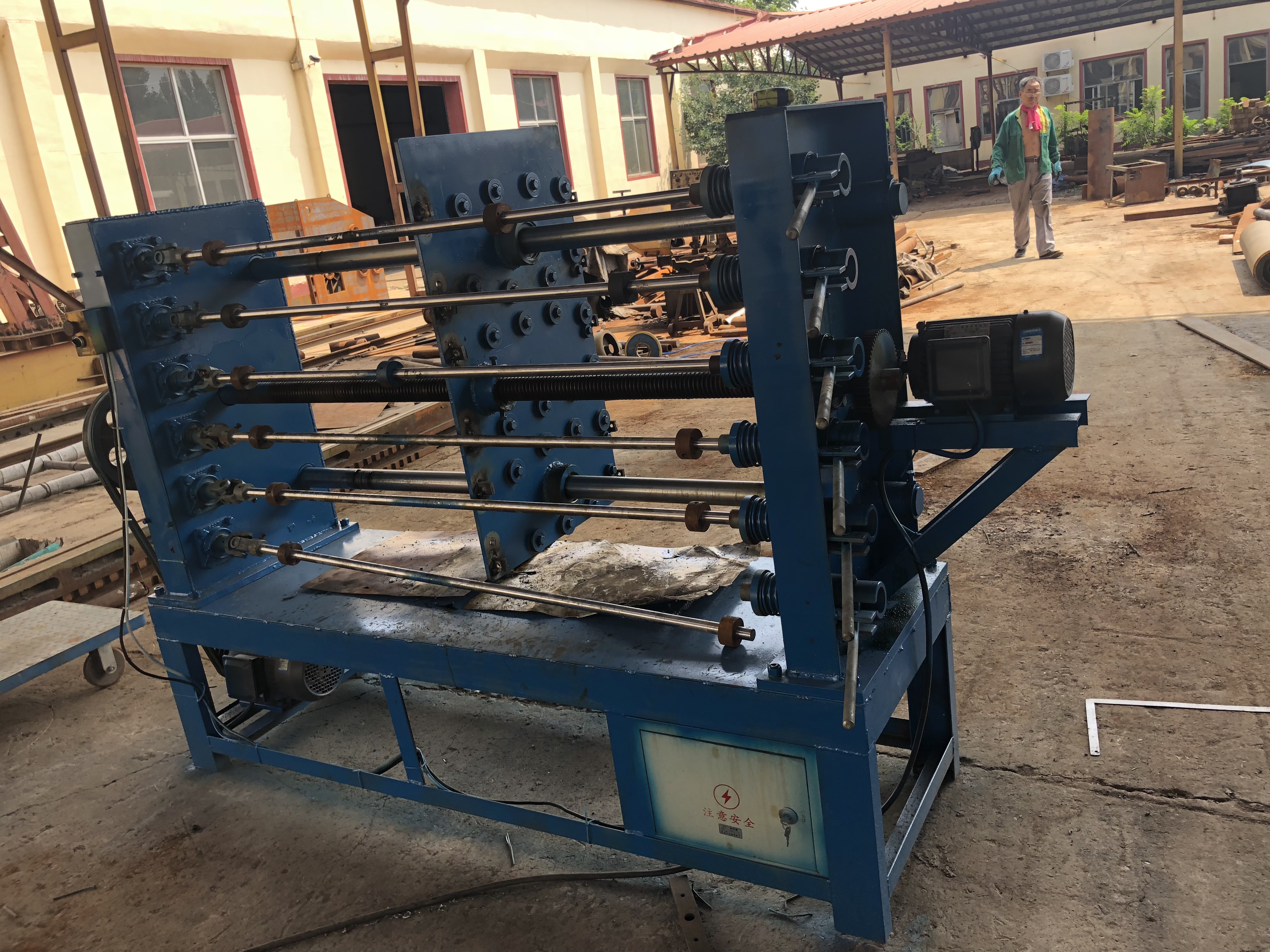

Low Noise Gabion Mesh Weaving Machine
The gabion mesh machine is to produce gabion mesh.The features:
fast speed, low vibration,single step operation, stable operation,
low noise and high efficiency.Now Let us talk about the machine
product-gabion box.Woven gabion can be made of various corrosive
resistant materials and then woven into a series of hexagonal
meshes panels. Then the panels are added the thicker selvedge wires
for higher loading capacity and durability. Different part of woven
gabion are attached together by the lacing wire.And gabion boxes
are widely used in prevention of soil and water loss,soil solid
structure,seashore defense project and so on.It have a big market
in the world,inquiry now!
Equipment after sales service:
1. The warranty period of the whole machine is 2 years. The
electrical parts of the equipment are maintained for life. The
warranty does not include vulnerable parts (abrasive tools) and
man-made damage.
2. If the customer equipment fails, our company will immediately
give a clear reply when receiving the call from the user. If still
cannot solve the problem, will go to the customer company for
maintenance.
3. After the warranty period, our company provides lifetime
after-sales service support, and provides equipment accessories at
the original price of accessories.
machine details
Model
| Mesh Size(mm) | Max. Width(mm) | Wire diameter(mm) | Twisting Number | Main Drive Shaft Speed(r/min) | Motor Capacity(KW) | Theoretical Speed(m/h) |
| LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 |
| LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 |
| LNWL23-120-2 | 120*150 | 1.6-3.2 | 20 | 255 |
| LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 |
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 |
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 |
| LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 |
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 |
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 |
| LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 25 | 2 | 165 |
| LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 |
| LNWL43-100-3 | 100*!20 | 1.6-3.0 | 225 |
| LNWL43-120-3 | 120*150 | 1.6-3.2 | 20 | 255 |
machine advantage in new design
1. The double rack drive hexagonal wire netting machine is
specificalized equipment for producing large diameter hexagonal
mesh.
2. The equipment's framework is more reasonable, design is
innovation, function is more perfect and safe using, the important
is that weavng mesh is more easier than before.
3. The equipment is satisfied with normal wire netting machine's
requipment, and also can meet weaving large diameter hexagonal
mesh's demand.
We can manufacture gabion machine according to customer request.
