Full Automatic Expanded Metal Machine JQ25-6.3 Max Length Of Mesh
20

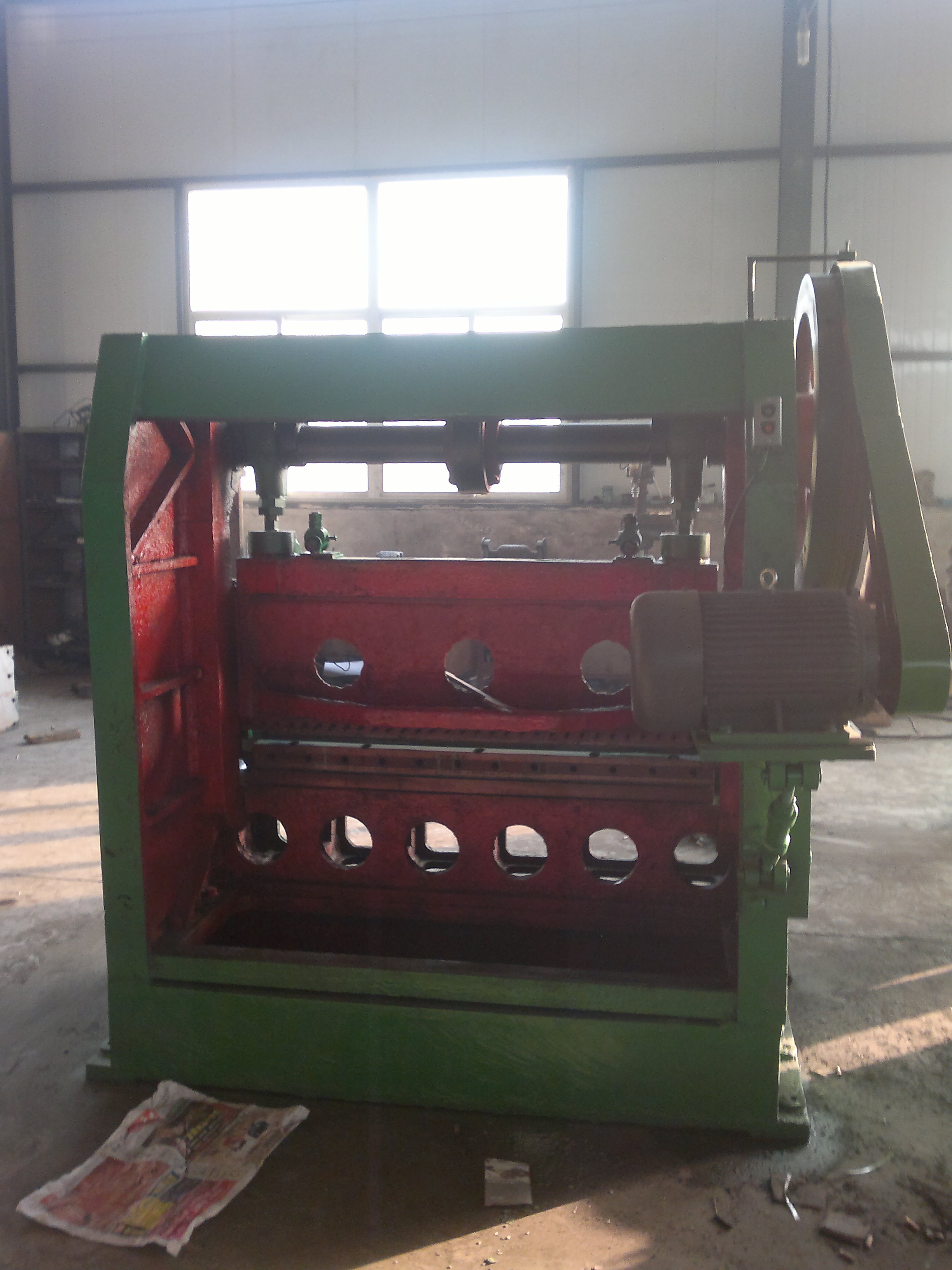

Expanded metal machine is also called steel mesh punching and
shearing machine, diamond mesh machine, stretch mesh machine, round
hole mesh machine, special-shaped mesh punching net machine. Can be
stamped into a variety of products with a variety of metal sheets.
All products are produced and processed by advanced computer
technology. The hole types are diverse and the arrangement is
flexible. In the years of production practice, we have accumulated
rich experience in the production and processing of steel mesh,
which can cut, bend and edging products. Deep processing such as
surface treatment.
The expanded mesh is mainly used in light industry, civil
engineering construction cement, mechanical equipment protection,
highway fence stadium fence, road green belt protection, etc.
After-sale services:
1.Guarantee period three years since the date of finishing
commission.
2.Customer services:24*7 online services.
3.No man factor,exchange the accessory parts for free.If the
components break down by mistaken operation,we supply only material
cost price.
4.We offer spares free,these spares can be enough for using one
year.
5.Can send engineer abroad if needed.
Techincal parameter | Type | JQ25-6.2T | JQ25-16T | JQ25-25T | JQ25-40T | JQ25-63T | JQ25-100T | | Material thickness(mm) | Max1.0 | Max1.0 | Max1.5 | Max3.0 | Max4.0 | Max6.0 | | Net Width(mm) | Max600 | Max1000 | Max1250 | Max1500 | Max1500 | Max2500 | | Punching Times/Min | 300 | 160 | 160 | 80 | 67 | 55 | | Feeding Distance(mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 | | Length of Mesh(mm) | Max20 | Max25 | Max40 | Max80 | Max200 | Max200 | | Motor Power( KW) | 2.2 | 3.2 | 4.0 | 11 | 11 | 15 | | Weight( T) | 0.95 | 2 | 3 | 6 | 10 | 12 | | Overal Dimension(mm) | 950x570x1780 | 1800x1320x1550 | 1940x1600x2010 | 2870x990x2140 | 2400x3500x2300 | 3600x2500x3000 |
we also can make the machine according to the client's requirment
|
